Description

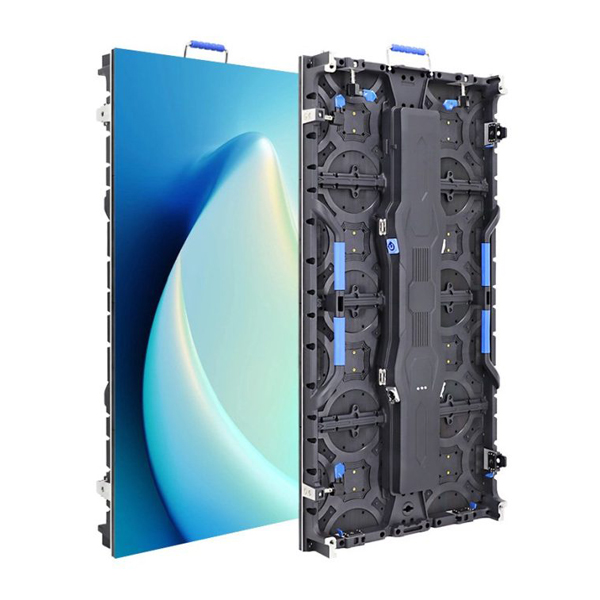

500x1000mm 1000C4 Rental LED Wall
1000 rental LED wall has two quick lock devices on
the left and right sides, which can ensure faster assembly speed and better screen
flatness. It also has anti-collision feet at the bottom of the cabinet to protect the
edge of the LED module. 500 and 1000 Can be installed together up and down ,
left and right.
Quick Install
1000 series LED screen is designed with two fast locks on
the left and right side to ensure faster assembly and better screen flatness.
Corner Protector for LED
1000 series LED sign has four corner protectors in each
corner to prevent LED to be damaged, more security for transport, installation,
operation, assemble & disassemble foldable design, and easy to use.
Free Splicing
500 series and 1000 series can be installed together
up and down, left and right.
Front Service (Optional)
Indoor 1000 rental LED display supports front service
design (Optional), which is convenient for maintenance and saves your cost.
Curve Lock (Optional)
High Precision Curve Lock design is adopted to solve the
problem that the old curved lock is difficult to use before. Rotational control, more
accurate, easy to use and quickly adjust curve degree.
Curved Installation (Optional)
1000 series LED display can be installed in inner arc or
outer arc.
IP65 Dustproof And Waterproof
The 1000 series outdoor LED display supports IP65
dustproof and waterproof, it can resists severe weather conditions during outdoor
activities. And die-cast aluminum is corrosion resistant.
Wide Viewing Angle
Viewing angle is up to 140° vertical and horizontal,
providing a wide viewing angle. Ultra-wide viewing angle give you the largest screen
viewing area. It offers you clear and natural images in all directions.
Indoor 500x1000mm 1000 Rental LED Wall Series Parameter
| Pixel Pitch (mm) | P1.56(GOB) | P1.95(GOB) | P2.5(GOB) | P2.6(GOB) | P2.97 | P3.91 | P4.81 |
|---|---|---|---|---|---|---|---|
| Model | 1000-iP1.56 | 1000-iP1.95 | 1000-iP2.5 | 1000-iP2.6 | 1000-iP2.97 | 1000-iP3.91 | 1000-iP4.81 |
| Pixel Configuration | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Density (Pixels/㎡) | 409,600 | 262,144 | 160,000 | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 160×160 | 128×128 | 100×100 | 96×96 | 84×84 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/40 | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500×1000 | 500×1000 | 500×1000 | 500×1000 | 500×1000 | 500×1000 | 500×1000 |
| Cabinet Weight (KG) | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Brightness (CD/㎡) | 750 | 800 | 800 | 750 | 800 | 800 | 700 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 480 | 480 | 576 | 560 |
| Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 160 | 160 | 192 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 1,920/3,840 | 1,920/3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
Outdoor 500x1000mm 1000 Rental LED Wall Series Parameter
| Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 | P3.91 | P3.91 | P4.81 |
|---|---|---|---|---|---|---|
| Model | 1000-OP2.6 | 1000-OP2.97 | 1000-OP3.91-16S | 1000-OP3.91-8S | 1000-OP3.91-B | 1000-OP4.81 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921(black) | SMD1921 |
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 | 65,536 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 96×96 | 84×84 | 64×64 | 64×64 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/24 | 1/21 | 1/16 | 1/8 | 1/8 | 1/13 |
| Cabinet Size (mm) | 500×1000 | 500×1000 | 500×1000 | 500×1000 | 500×1000 | 500×1000 |
| Cabinet Weight (KG) | 13 | 13 | 13 | 13 | 13 | 13 |
| Brightness (CD/㎡) | 4500 | 4500 | 4800 | 6000 | 4000 | 4200 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 720 | 720 | 720 | 720 | 560 |
| Avg. Power Consumption (W/㎡) | 240 | 240 | 240 | 240 | 240 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
