Description
Indoor&Outdoor 1000 Rental LED
Screen

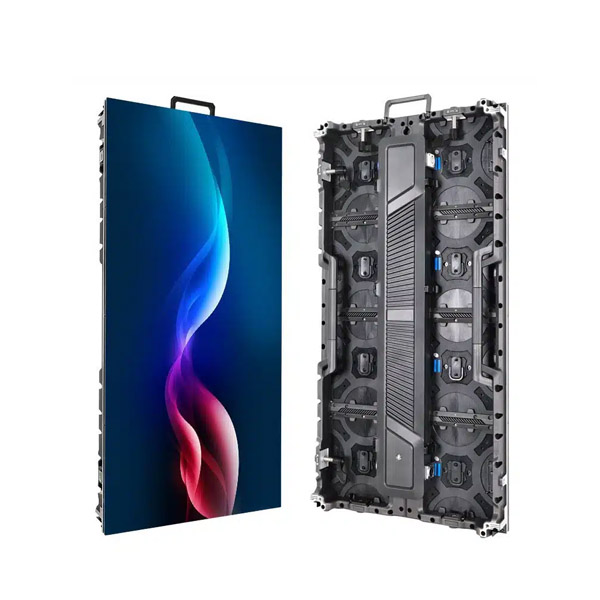

1000 rental LED screen adopts a convenient quick-lock
design and supports curved installation. The cabinet is made of durable die-cast
aluminum, and all screws and quick locks are made of stainless steel, which increases
the overall sturdiness and durability.
Quick Install
There are two quick locks on the left and top sides of
1000 series LED screen to ensure faster assembly and better screen flatness.
Corner Protector for LED
1000 rental LED signage is designed with four corner
guards to effectively prevent damage to the LED during transportation, installation and
disassembly, and ensure the integrity of the LED display.
Curved Installation (Optional)
1000 rental LED display wall has the flexibility of arc
installation. You can choose inner arc installation or outer arc installation to meet
different scenarios and needs.
Mixed Splicing
1000 and 500 cabinets can be easily spliced up and
down, greatly meeting the different needs of stage design.

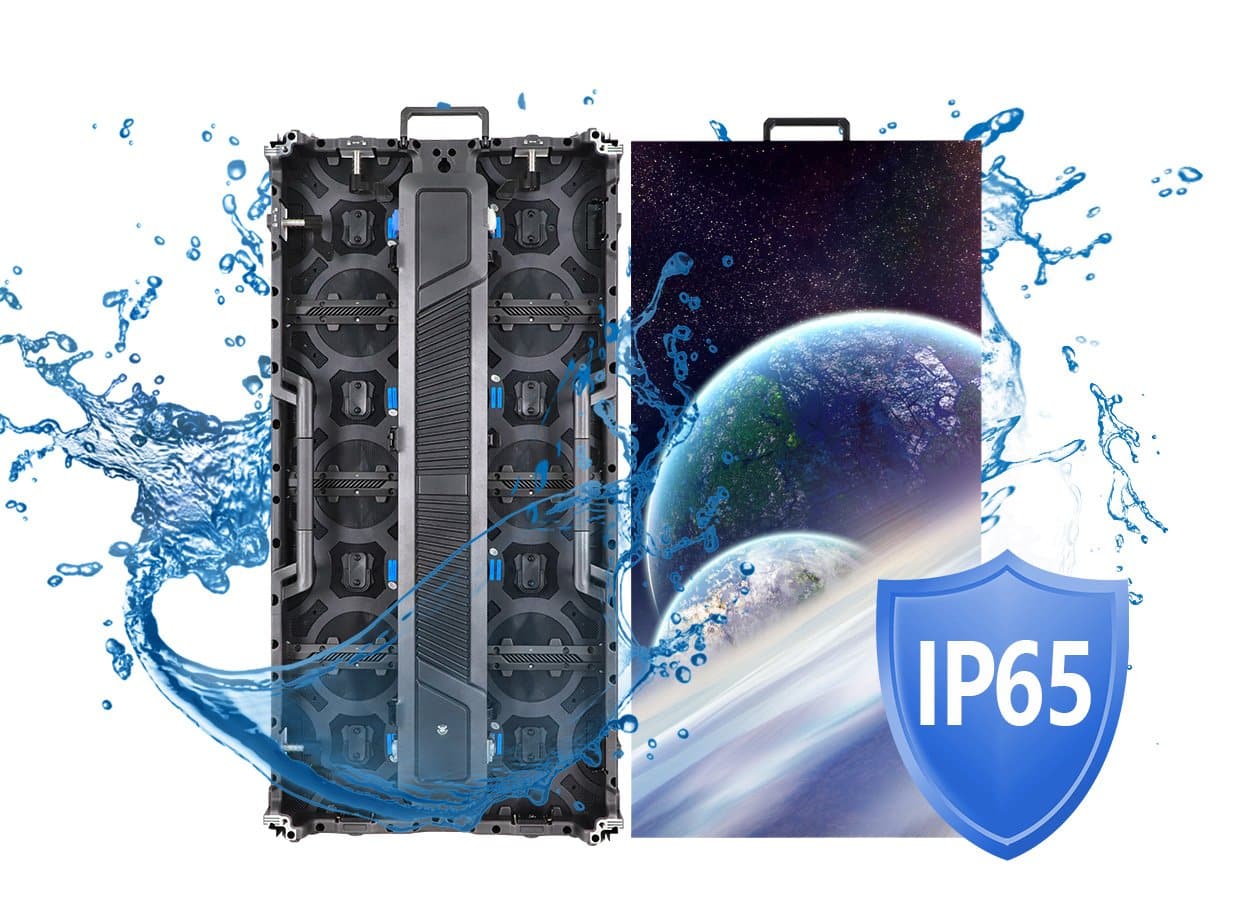

1000 outdoor series LED display supports IP65 dustproof
and waterproof, which can resist harsh weather conditions in outdoor activities.
Excellent Display Experience
3840Hz high refresh rate, high grayscale, and high brightness
provide an excellent viewing experience.
Widely Used
1000 rental LED video wall is widely used in various
scenarios, including stage events, exhibitions, business meetings, etc. Its flexibility
and ease of installation make it ideal for temporary events and long-term use.
Outdoor 500x1000mm 1000 Rental LED Screen Series Parameter
| Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 | P3.91 | P3.91 | P4.81 |
|---|---|---|---|---|---|---|
| Model | 1000-OP2.6 | 1000-OP2.97 | 1000-OP3.91-16S | 1000-OP3.91-8S | 1000-OP3.91-B | 1000-OP4.81 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921(black) | SMD1921 |
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 | 65,536 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 96×96 | 84×84 | 64×64 | 64×64 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/24 | 1/21 | 1/16 | 1/8 | 1/8 | 1/13 |
| Cabinet Size (mm) | 500×1000 | 500×1000 | 500×1000 | 500×1000 | 500×1000 | 500×1000 |
| Cabinet Weight (KG) | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 |
| Brightness (CD/㎡) | 4500 | 4500 | 4800 | 6000 | 4000 | 4200 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 720 | 720 | 720 | 720 | 560 |
| Avg. Power Consumption (W/㎡) | 240 | 240 | 240 | 240 | 240 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
Indoor 500x1000mm 1000 Rental LED Screen Series Parameter
| Pixel Pitch (mm) | P1.56(indoor) GOB | P1.95(indoor) GOB | P2.5(indoor) GOB | P2.6(indoor) GOB | P2.97(indoor) | P3.91(indoor) | P4.81(indoor) |
|---|---|---|---|---|---|---|---|
| Model | 1000-iP1.56 | 1000-iP1.95 | 1000-iP2.5 | 1000-iP2.6 | 1000-iP2.97 | 1000-iP3.91 | 1000-iP4.81 |
| Pixel Configuration | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Density (Pixels/㎡) | 409,600 | 262,144 | 160,000 | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 160×160 | 128×128 | 100×100 | 96×96 | 84×84 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/40 | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500×1000 | 500×1000 | 500×1000 | 500×1000 | 500×1000 | 500×1000 | 500×1000 |
| Cabinet Weight (KG) | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| Brightness (CD/㎡) | 750 | 800 | 800 | 750 | 800 | 800 | 700 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 480 | 480 | 576 | 560 |
| Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 160 | 160 | 192 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 1,920/3,840 | 1,920/3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
