Description

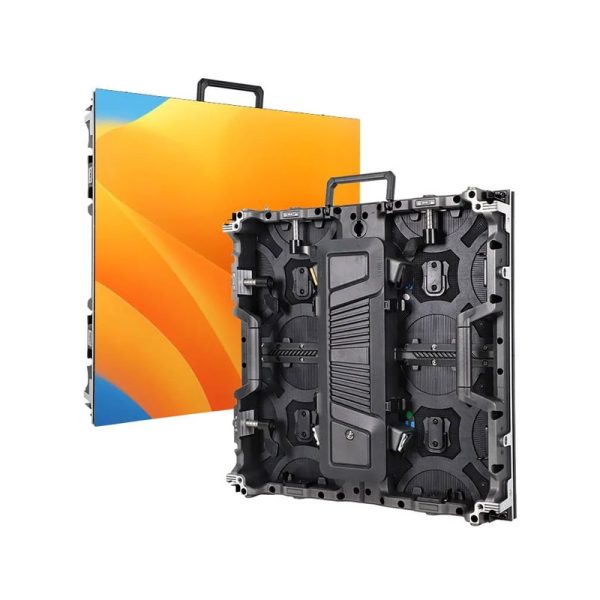

Indoor&Outdoor 500C6 Rental LED
Display
500 rental LED display adopts quick-lock design and
supports bending installation, making it easy and fast to install. The cabinet is
made of die-cast aluminum, and all screws and quick locks are made of stainless
steel, making it stronger and more durable. It is an ideal rental cabinet.
Quick Install
500 Series LED screen two fast Locks on left and top
side, ensure faster assembly and better screen flatness.
Corner Protector for LED
500 rental LED display is designed with four corner
guards to effectively prevent damage to the LED during transportation, installation,
operation and disassembly.
Curved Installation (Optional)
500 rental LED display wall supports curved
installation, and can be installed in inner arc or outer arc.
Mixed Splicing
500 and 1000C6 cabinets can be easily spliced up
and down, greatly meeting the different needs of stage design.
IP65 Waterproof
500 outdoor series LED display supports IP65
dustproof and waterproof, which can resist harsh weather conditions in outdoor
activities.
Excellent Display Experience
3840Hz high refresh rate, high grayscale, and high
brightness provide an excellent viewing experience.
Wide Viewing Angle
Viewing angle is up to 140° vertical and horizontal,
providing a wide viewing angle.
Ultra-wide viewing angle give you the largest
screen viewing area.
Widely Used
500 rental LED display is widely used in various
scenarios, including event sites, exhibitions, business meetings, etc. Its
flexibility and ease of installation make it ideal for temporary events and
long-term use.
Outdoor 500x500mm 500 Rental LED Display Series Parameter
| Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 | P3.91 | P3.91 | P4.81 |
|---|---|---|---|---|---|---|
| Model | 500-OP2.6 | 500-OP2.97 | 500-OP3.91-16S | 500-OP3.91-8S | 500-OP3.91-B | 500-OP4.81 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921(black) | SMD1921 |
| Density (Pixels/㎡) | ‘ 147,928 | 112,896 | 65,536 | 65,536 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 96×96 | 84×84 | 64×64 | 64×64 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/24 | 1/21 | 1/16 | 1/8 | 1/8 | 1/13 |
| Cabinet Size (mm) | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 |
| Cabinet Weight (KG) | 7.3 | 7.3 | 7.3 | 7.3 | 7.3 | 7.3 |
| Brightness (CD/㎡) | 4500 | 4500 | 4800 | 6000 | 4000 | 4200 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 720 | 720 | 720 | 720 | 560 |
| Avg. Power Consumption (W/㎡) | 240 | 240 | 240 | 240 | 240 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ‘ 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 |
| Working Temperature (ºC) | ‘ -20～+60 | ‘-20～+60 | ‘-20～+60 | ‘-20～+60 | ‘-20～+60 | ‘-20～+60 |
| Lifetime (Hours) | ‘ 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
Indoor 500x500mm 500C6 Rental LED Display Series Parameter
| Pixel Pitch (mm) | P1.56(GOB) | P1.95(GOB) | P2.5(GOB) | P2.6(GOB) | P2.97 | P3.91 | P4.81 |
|---|---|---|---|---|---|---|---|
| Model | 500C6-iP1.56 | 500C6-iP1.95 | 500C6-iP2.5 | 500C6-iP2.6 | 500C6-iP2.97 | 500C6-iP3.91 | 500C6-iP4.81 |
| Pixel Configuration | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Density (Pixels/㎡) | 409,600 | 262,144 | 160,000 | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 160×160 | 128×128 | 100×100 | 96×96 | 84×84 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/40 | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 |
| Cabinet Weight (KG) | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| Brightness (CD/㎡) | 750 | 800 | 800 | 750 | 800 | 800 | 700 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 480 | 480 | 576 | 560 |
| Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 160 | 160 | 192 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 1,920/3,840 | 1,920/3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
