Description

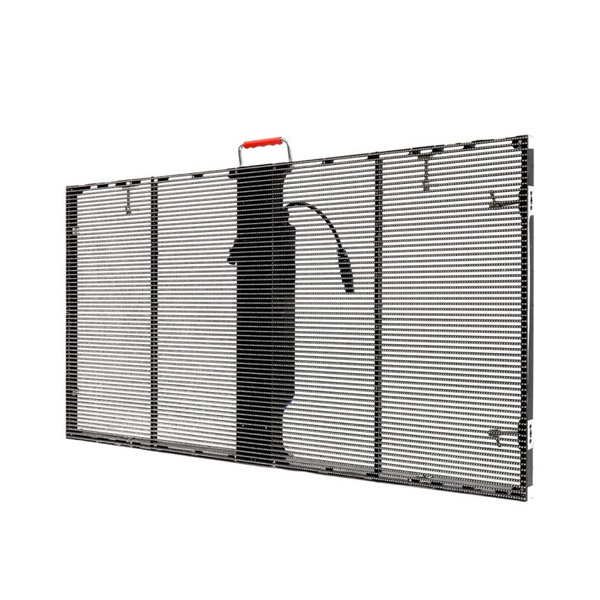

1000 Series Rental Indoor Transparent
LED Display
1000 series indoor transparent LED display is designed
for rental applications. It features fast installation, ultra-high transparency,
ultra-thin and ultra-light structure design, high-precision modular design, transparency
over 70%, and is easy to install and disassemble.
500*1000mm Lightweight cabinet
Die-cast aluminum cabinet, transparent structure, the weight is
only 7.5kg/pcs, Cabinet size：1000 x500mm
70% High Transparency
70% transparency, greatly reduce wind resistance, better cooling
effect, without affecting the indoor vision
Perfect Structure
Stable and reliable screen body with good heat dissipation
effect.
The screen can be hung or mounted on the window. Multi-screen interaction.
Easy to Install
Stacking, hanging and fixed installations are supported.
Viewing angle is up to 140° vertical and horizontal, providing a
wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area.
It offers you clear and natural images in all directions.
1000 Indoor Rental Outdoor Transparent LED Screen Parameter
| Pixel Pitch (mm) | P3.91-7.82 | P3.91-7.82 | P7.81 |
|---|---|---|---|
| Pixel Configuration | 1000-P3.91-8S | 1000-P3.91-16S | 1000-P7.81 |
| Pixel Configuration | SMD1921 | SMD1921 | SMD1921 |
| Density (Pixels/㎡) | 32,768 | 32,768 | 16,384 |
| Module Resolution (Pixel) | 128×16 | 128×16 | 64×16 |
| Module Size (mm) | 500×125 | 500×125 | 500×125 |
| Driving Mode (Duty) | 1/8 | 1/16 | 1/4 |
| Cabinet Size (mm) | 1000×500 | 1000×500 | 1000×500 |
| Cabinet Weight (KG) | 7.5 | 7.5 | 7.5 |
| Brightness (CD/㎡) | 4500 | 2500 | 4500 |
| Transparency | 53 | 53 | 58 |
| Viewing Angle (°) | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 800 | 800 | 800 |
| Avg. Power Consumption (W/㎡) | 220 | 220 | 220 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3840 | 3840 | 3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 |
| Protecting Grade | IP33 | IP33 | IP33 |
