Description

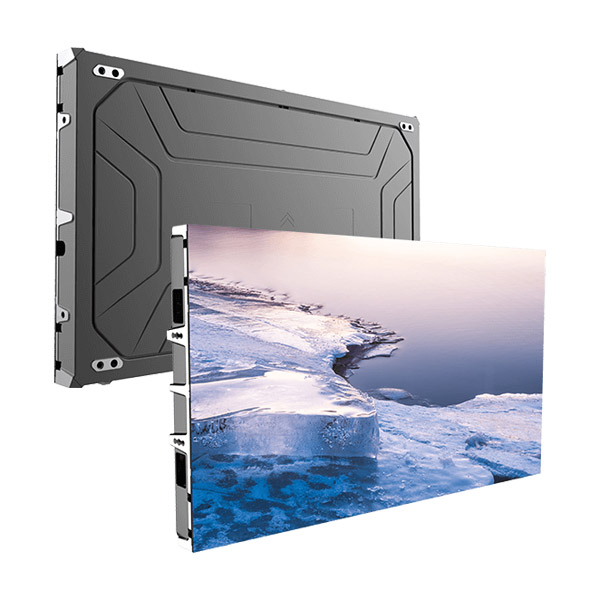

Mnano Ⅱ Series

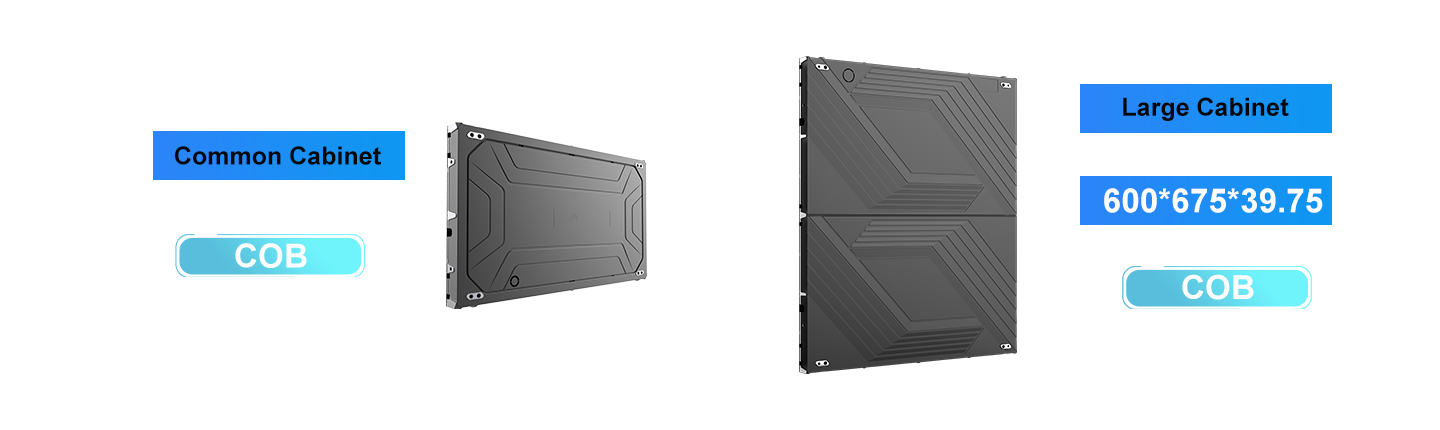

More Cabinets Options
· Common cabinet with COB encapsulation technology. · Large cabinet size with 600*675*39.75 for P0.9/1.25/1.56/1.87.· They are optional.

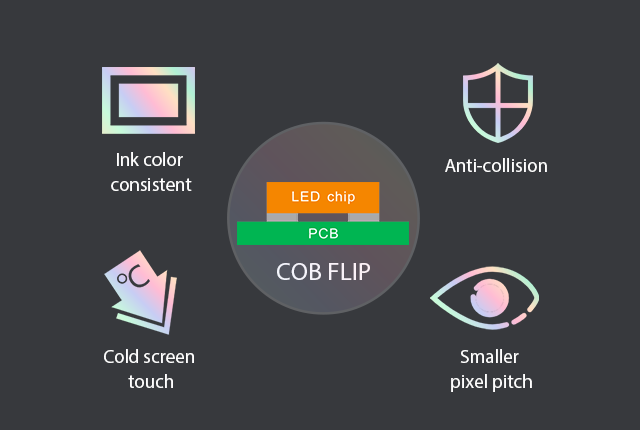

What Does Flip COB Bring？
· Ink color consistent for a long time. · Super LED’s anti-collision ability. · Low power consumption, low-temperature surfaces. · Break the limit of the pixel pitch.
Optional Version—-Mnano Pro P1.87 with 7680Hz Refresh Rate
High refresh rate minimizes motion blur, providing a smoother visual experience for fast-paced content such as gaming and action movies. To capture every detail for you.
Optional Version—-Mnano Pro P1.87 with 1000 nits Brightness
Features a 1000 nits brightness level, providing clarity and vibrant colors within interior spaces.
Cool Screen, Extended Life Span
Lower power consumption and better heat dissipation, creating the cool screen, extend the life of the screen components.
High Uniformity Ink Color, Excellent Viewing Experience
The whole screen can keep the ink color consistent for a long time. Contrast up to 10,000:1, better viewing experience.
High Uniformity Ink Color, Excellent Viewing Experience

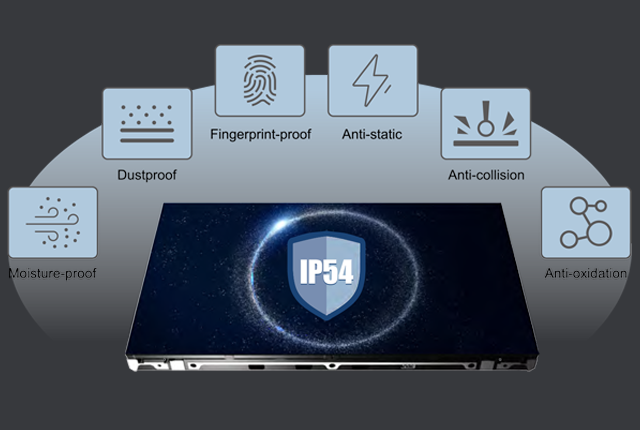

The whole screen can keep the ink color consistent for a long time. Contrast up to 10,000:1, better viewing experience.Multiple Protections Fully Guarantee Reliability

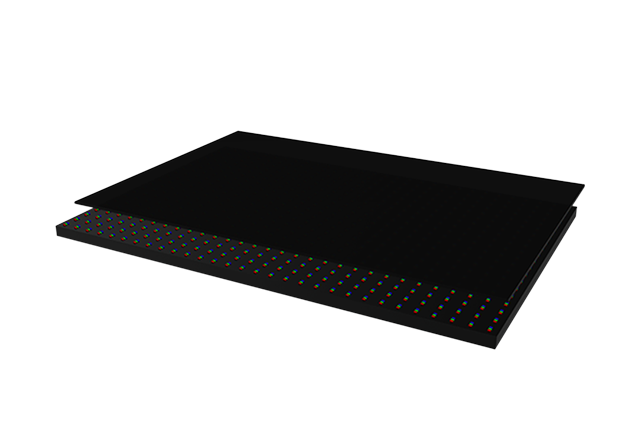

Panel packaging and new optical material surface treatment, the light board protection level can be up to IP54, panel hardness of 4H.

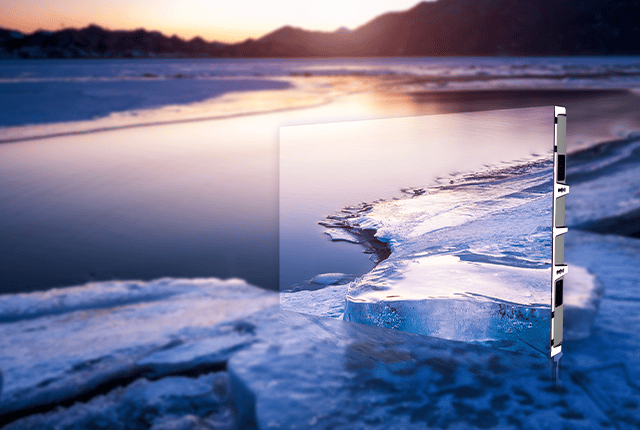

Precision Splicing, Easy Application
Precise cabinet and adjustable splicing design, high surface flatness, easily achieve seamless splicing into 2k / 4k / 8k screen display.
Parameters
| Contact us for more parameters | |||||
| Pixel Pitch (mm) | 0.78 | 0.9 | 1.25 | 1.56 | 1.87 |
| Encapsulation | COB(Common cathode) | COB(Common cathode) | COB (Common anode) | COB (Common anode) | COB (Common anode) |
| Module Size (mm) | 150*168.75 | 150*168.75 | 150*168.75 | 150*168.75 | 150*168.75 |
| Cabinet Size (mm) | 600*337.5*39.75 | 600*337.5*39.75/ 600*675*39.75 | 600*337.5*39.75/ 600*675*39.75 | 600*337.5*39.75/ 600*675*39.75 | 600*675*39.75 |
| Cabinet Resolution (W×H) | 768*432 | 640*360/640*720 | 480*270/480*540 | 384*216/384*432 | 320*360 |
| IP Grade | Front IP54 | Front IP54 | Front IP54 | Front IP54 | Front IP54 |
| Weight (kg/cabinet) | 4 | 4/7.9 | 4/7.9 | 4/7.9 | 7.9 |
| White Balance Brightness (nit) | 600 | 600 | 600 | 600 | 550 |
| Horizontal / Vertical Viewing Angle | 160 | 160 | 16 0 | 160 | 160 |
| Power Consumption(W/㎡) | 420/140 | 370/123 | 346/115 | 346/115 | 321/107 |
| Refresh Rate(Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Control System | Nova | Nova | Nova | Nova | Nova |
| Certification | CE,ROHS,ETL,EMC CLASS-A | CE,ROHS,ETL,EMC CLASS-A | CE,ROHS,ETL,EMC CLASS-A | CE,ROHS,ETL,EMC CLASS-A | CE,ROHS,ETL,EMC CLASS-A |
| Pixel Pitch (mm) | 0.62 Pro | 0.78 Pro | 0.9 Pro | 1.25 Pro | 1.87 Pro |
| Encapsulation | COB(Common cathode) | COB(Common cathode) | COB(Common cathode) | COB(Common cathode) | COB (Common anode) |
| Module Size (mm) | 150*168.75 | 150*168.75 | 150*168.75 | 150*168.75 | 150*168.75 |
| Cabinet Size (mm) | 600*337.5*39.75 | 600*337.5*39.75 | 600*337.5*39.75 | 600*337.5*39.75 | 600*337.5*39.75 |
| Cabinet Resolution (W×H) | 960*540 | 768*432 | 640*360 | 480*270 | 320*180 |
| IP Grade | Front IP54 | Front IP54 | Front IP54 | Front IP54 | Front IP54 |
| Weight (kg/cabinet) | 4 | 4 | 4 | 4 | 4 |
| White Balance Brightness (nit) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Horizontal / Vertical Viewing Angle | 160 | 160 | 160 | 160 | 160 |
| Max./Avg. Power Consumption (W/m²) | 543/181 | 494/165 | 469/165 | 445/148 | 445/148 |
| Refresh Rate(Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | 7680 |
| Control System | Nova | Nova | Nova | Nova | Nova |
| Certification | 3C,ROHS,EMC,CLASS-A,CECP | 3C,ROHS,EMC,CLASS-A,CECP | 3C,ROHS,EMC,CLASS-A,CECP | 3C,ROHS,EMC,CLASS-A,CECP | 3C,ROHS,EMC,CLASS-A,CECP |
| Contact us for more parameters |
