Description

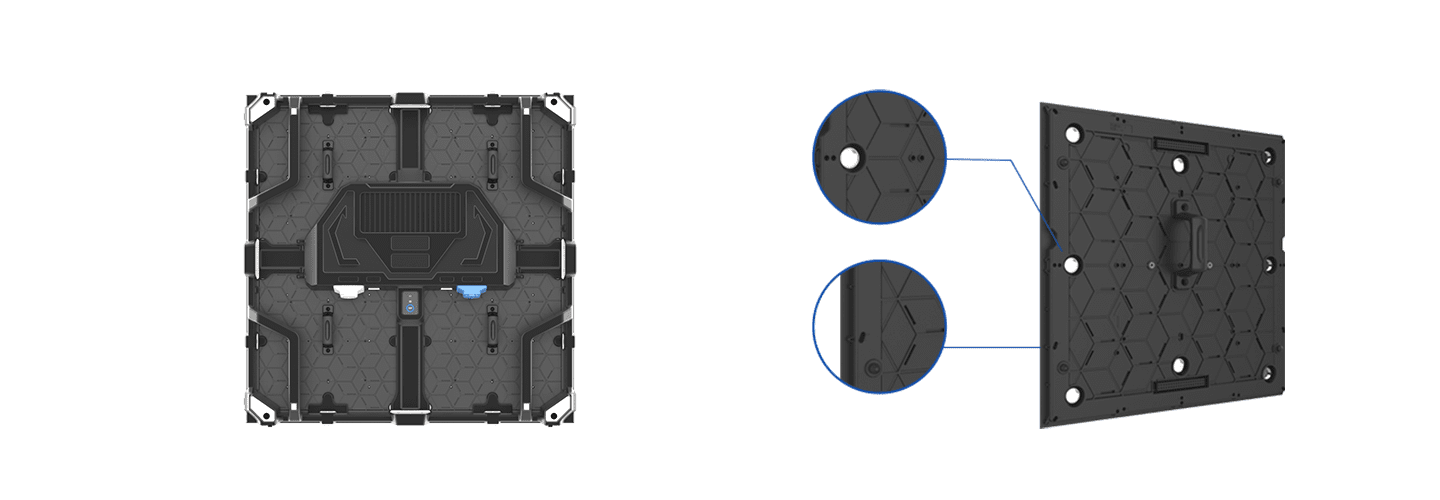

Higher Flatness and Accuracy
Adopting die-casting aluminum cabinet, it is lighter and has higher precision. Module positioning with magnetic design and the PCB fits the cabinet frame, reduces tolerance, and improves the flatness.
High Stability and High Reliability
Excellent Viewing Experience
≥3840Hz high refresh rate High contrast ratio 160° wide viewing angle, comfortable for close watching
Wider Application Coverage, Cost Saving

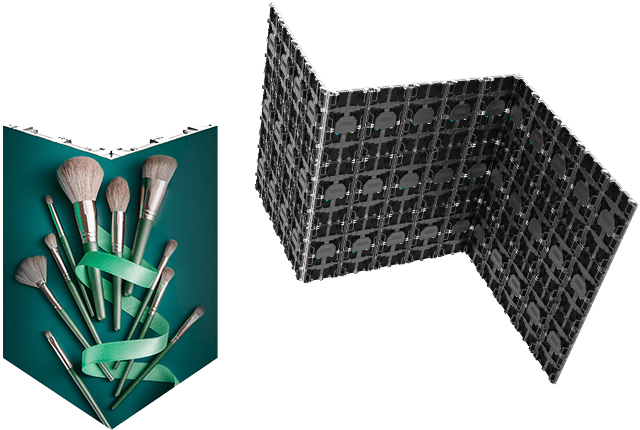

Customized 45° angle cabinet can realize seamless corner splicing. Replace the module, it can upgrade the resolution. Support ground stacking, wall mount, and embedded install.

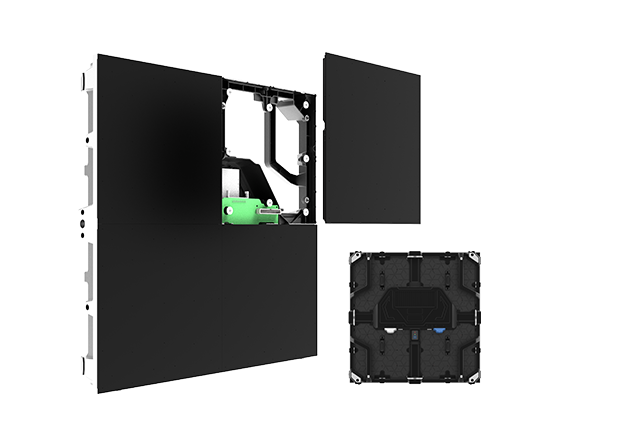

Easy to Install and Maintain
Smart monitoring, working temperature display and self-testing Adopted fast lock structure(optional), faster to install Front access, easy to maintenance

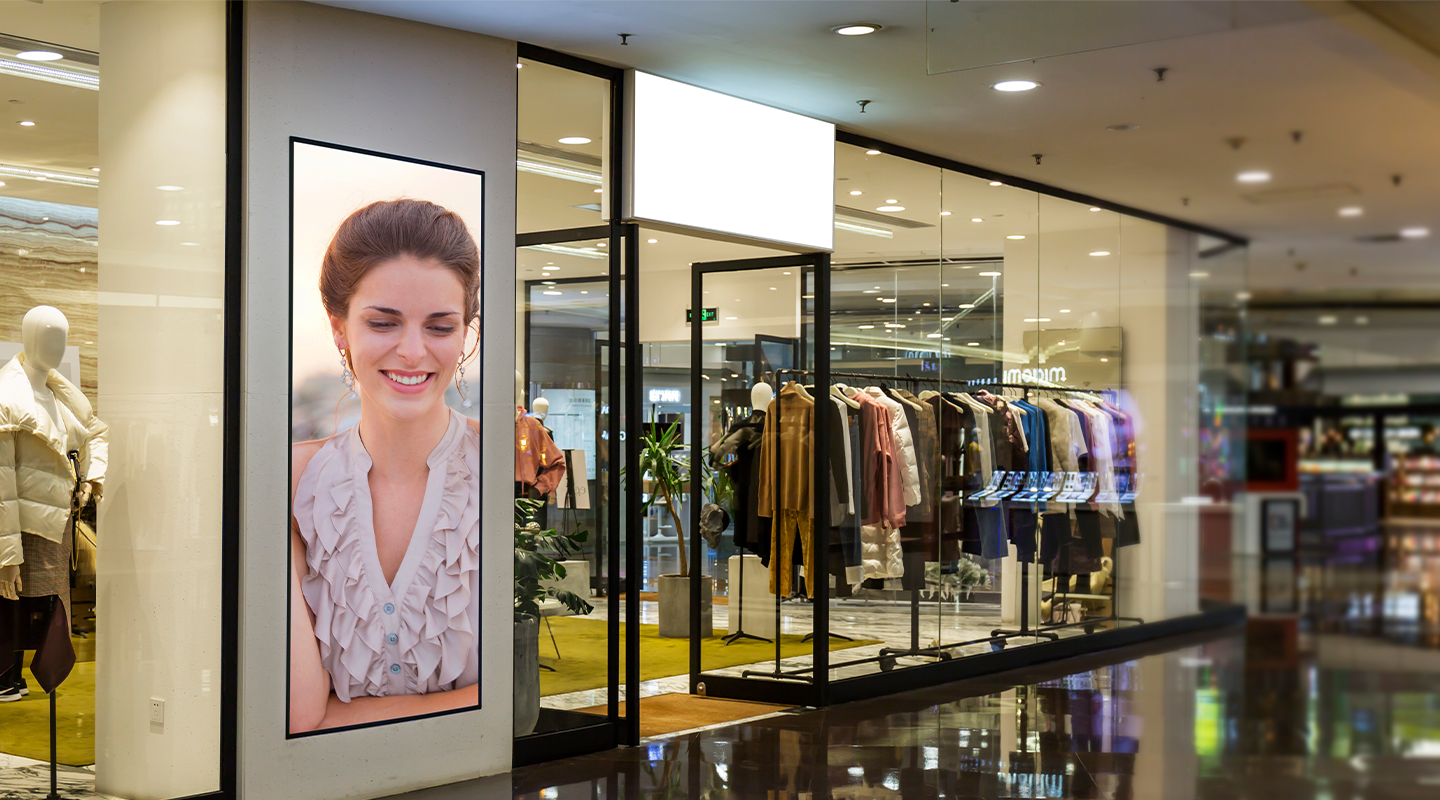

Dynamic Display, Activate Showcase
4000-4500nits (P1.9/2.6) high brightness, suit for showcase display in street-side advertising.

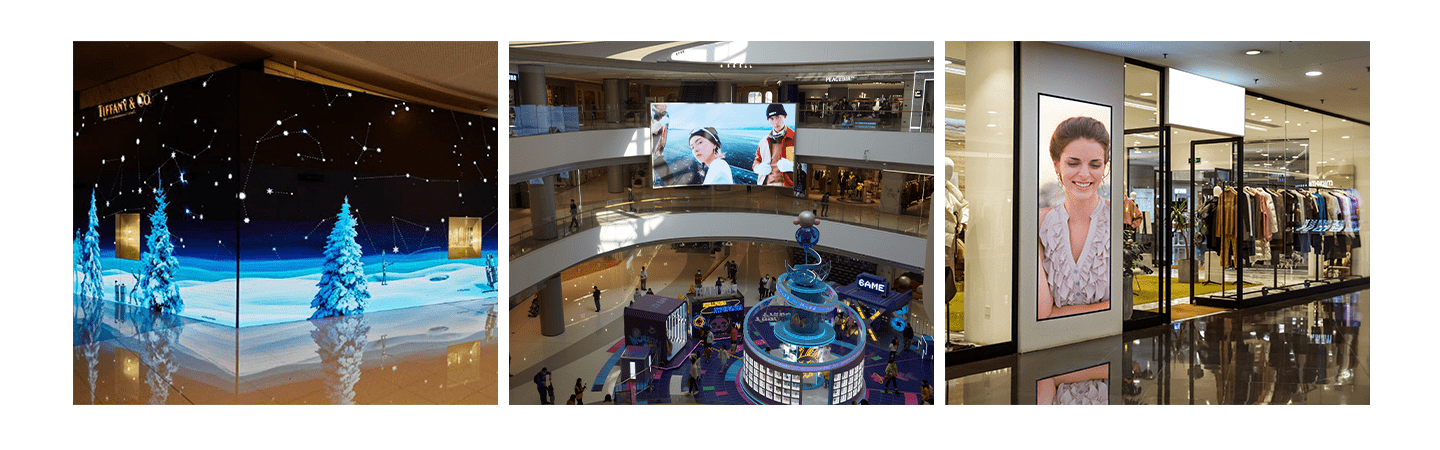

Application Scenarios
Hotels, schools, shopping malls, multi-function halls of enterprises and institutions, conference rooms, etc.
Parameters
| Pixel Pitch (mm) | 1.9 | 2.6 | 2.9 | 3.9 | 4.8 |
| Operating Environment | Indoor | Indoor | Indoor | Indoor | Indoor |
| Module Size (mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size (mm) | 500*500*65/500*1000*65 | 500*500*65/500*1000*65 | 500*500*65/500*1000*65 | 500*500*65/500*1000*65 | 500*500*65/500*1000*65 |
| Cabinet Resolution (W×H) | 256*256/256*512 | 192×192/192×384 | 168×168/168×336 | 128×128/128×256 | 104×104/104×208 |
| Weight (kg/cabinet) | 5.6/11.5 | 5.6/11.5 | 5.6/11.5 | 5.6/11.5 | 5.6/11.5 |
| White Balance Brightness (nit) | 800-1000 | 800-1000 | 800-1000 | 800-1000 | 800-1000 |
| Horizontal / Vertical Viewing Angle | 160/155 | 160/145 | 160/150 | 160/155 | 160/145 |
| Power Consumption(W/㎡) | 460±15%/155±15% | 450±15%/150±15% | 500±15%/170±15% | 520±15%/175±15% | 500±15%/170±15% |
| Refresh Rate(Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Control System | Nova | Nova | Nova | Nova | Nova |
| Certification | TUV CE, FCC, ETL | TUV CE, FCC, ETL | TUV CE, FCC, ETL | TUV CE, FCC, ETL | TUV CE, FCC, ETL |
