Description

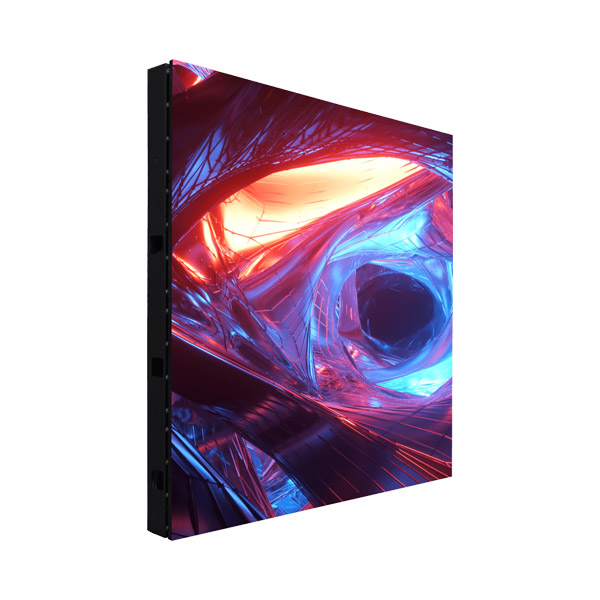

product details
Thin and light mounting
The module supports two mounting methods: screw fixing and magnetic suction. Modular or box as a unit of splicing, screen size is flexible, easy to install
Good display effect
3840Hz high refresh rate + 9000:1 High contrast + 160° ultra-wide viewing Angle, to provide users with excellent visual experience.
Uniform heat dissipation
The box has an excellent cooling system, uniform heat dissipation, to ensure the service life and display effect of the screen body.
Product Parameter
| product name | YFN-P01JNFS | YFN-P02GNFD | YFN-P02JNFD | YFN-P03JNFD | YFN-P04INFD |
| environmental conditions | indoor | indoor | indoor | indoor | indoor |
| Pixel structure | 1515 | 2020 | 2020 | 2020 | 2020 |
| Point spacing (mm) | 1.9 | 2.6 | 2.9 | 3.9 | 4.8 |
| Module Size (mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Housing resolution (W×H) | 128*128 | 96*96 | 84*84 | 64*64 | 52*52 |
| Body weight (kg/ box) | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 |
| White Balance Brightness (nit) | 800-1200 | 800-1200 | 800-1200 | 800-1200 | 800-1200 |
| Horizontal/vertical view | 160/160 | 160/160 | 160/120 | 160/120 | 160/120 |
| Box power consumption (W/㎡) | 400±15%/133±15% | 420±15%/140±15% | 440±15%/146±15% | 440±15%/146±15% | 440±15%/146±15% |
| Refresh rate (Hz) | ≥3840 | ||||
| control system | Nova | Nova | Nova | Nova | Nova |
| attestation | CCC/energy conservation | CCC/energy conservation | CCC/energy conservation | CCC/energy conservation | CCC/energy conservation |
