Description

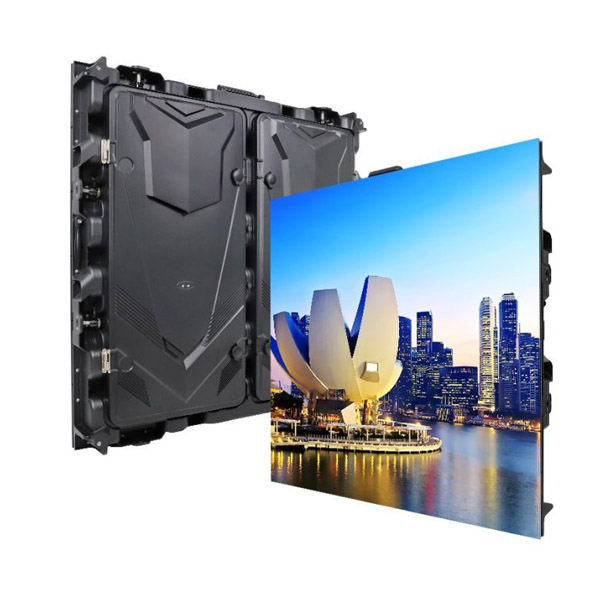

960 960x960mm Advertising LED Screen
960 advertising LED screen with 960mmx960mm size cabinet
design. The cabinet is made of magnesium alloy, which is strong and durable. This LED
display can be used for both indoor and outdoor applications, including fixed
installations and rentals.
Quick Assembly
There are two quick locks on the top and left side of the
cabinet to support quick installation.
Hidden Line Design
The direct power lines and signal lines of the cabinet are
connected through the holes reserved on the side of the cabinet.
User-friendly Handle
The top and sides of the cabinet contain a handle to
facilitate moving the LED display.
Openable Back Cover
960 LED display has a compact structure and the back cover
can be opened quickly for maintenance operations.
Fast Heat Dissipation
960 LED display is equipped with 4 wing fans on the back
cover for quick heat dissipation.
IP65 Waterproof
The ingress protection of cabinet rating up to IP65, the
fully sealed cabinet is weatherproof, dustproof, damp-proof, bringing the ingress
protection of led display up to a new level.
Superb Display Effect
In commercial display applications, 960’s high brightness
and high refresh rate bring users more realistic and vivid visual effects.
Application Scenarios
960 LED screen is suitable for a variety of application
scenarios, such as commercial plazas, commercial event venues, stage events, commercial
street advertising, etc.
960 advertising LED screen Indoor Series Parameter
| Model | 960-iP2.5 | 960-iP3.076 | 960-iP4 | 960-iP5 |
| Pixel Configuration | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Density (Pixels/㎡) | 160,000 | 105,625 | 62,500 | 40,000 |
| Module Resolution (Pixels) | 128×64 | 104×52 | 80×40 | 64×32 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 |
| Driving Mode (Duty) | 1/32 | 1/26 | 1/20 | 1/16 |
| Cabinet Size (mm) | 960×960 | 960×960 | 960×960 | 960×960 |
| Cabinet Weight (KG) | 25 | 25 | 25 | 25 |
| Brightness (CD/㎡) | 800 | 800 | 700 | 700 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 457 | 413 | 351 | 312 |
| Avg. Power Consumption (W/㎡) | 153 | 138 | 117 | 104 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3,840 | 1920 / 3840 |
1920 / 3840 |
1920 / 3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 |
