Yilian Smart Module Series



EL Series LED module





l Fully automatic screen connection, adaptive playback window, eliminating the hassle of connection

l No need for human intervention, fully automatic screen connection. Automatically identify the position of each module in space, and each module automatically displays the content of its intended location.

l Gigabit Ethernet cable connection. No need to fix any wiring method, it can be crossed, bent, and entered at any position completely freely.

l When multiple network cables jointly control a large screen, there is no need to distinguish the order of the network cables. The output of the sending card network cable can be changed at any time, and the large screen maintains the display of the entire screen image.

l You can choose to maintain real-time automatic screen connection, or perform automatic screen connection once during installation, and exit the automatic screen connection after installation to lock the module position.

l During later maintenance, spare parts can be replaced at will. As long as the spare parts are replaced, no matter where they are placed, automatic screen connection will be enabled, and the large screen will automatically display the entire screen.

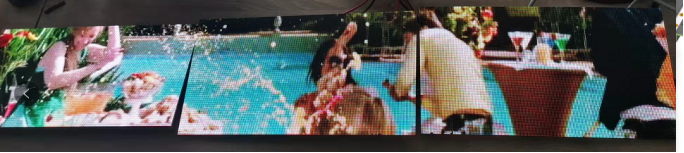

l Alien display screen, as long as there is an edge connection between any module, it also has automatic screen connection function without manual intervention.

l Factory locked optimal parameters, no loss of parameters, no need for secondary debugging

l In the production plant, the LED light type specifically designed for this module has been fully integrated, with optimized parameters based on the model of the driver IC and the type of the tube chip, ensuring that the module is set with parameters that can fully display the best display effect when it leaves the factory.

l After receiving the module, users only need to plug in the power and signal cables to display the content, eliminating the need for technicians to operate complex debugging and setting software on site.

l The module is in the production plant and has undergone brightness and chromaticity correction on the assembly line to ensure that when users receive the module, the colors of red, green, blue, white, etc. have been adjusted to high consistency and a high color gamut range.

l Users only need to adjust the display brightness, color temperature, and control the module to standby black screen or lock in real time during use

l Display content.





l No need to debug software, no need for technical training, remote guidance

l Users who receive the BlackBlock module can light up the entire display screen without the need for any configuration software.

l LED display screen setup is a complex task, and previous LED engineering construction and after-sales require professional technicians to debug.

l The usage of setting software varies among different control card manufacturers, making it difficult for technicians to learn and understand the usage of various software.

l The limitations of export regions and language barriers have restricted the use of LED displays in other countries.

l When the after-sales service needs to replace a certain control card, technicians need to consult a lot of information, upgrade the control card program, try various parameters, and spend a lot of time and energy.



l 6 major patents for worry free protection

l 3C certification, CE/FC certification

l Whole machine shipment, saving labor

l Simple installation and easy maintenance



l Quality first, stability first

l Time saving, labor-saving, and worry free

l Fire and dust prevention, safety first



Single module class





320×480 class





320×540 class









Rental box type



Fixed box type



Single module class







320×480（320）overall module class













320×540（360）overall module class









Rental box type













Outdoor fixed box type
